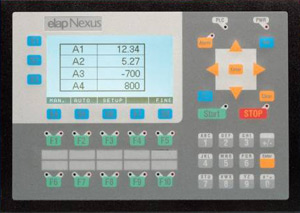

Nexus

2-4 Axes Multi-function Controller
with Embedded PLC

Control over 2 to 4 axes
Embedded PLC
Graphical pages handled
Interface completely programmable by the user.
field bus

Specifications and performance
Control over 2 to 4 axes
Embedded PLC, programmable language: LADDER or AWL
Programmable user interface
Graphical pages handled
Media bus for I/O expansion
Arrangement for further field buses (profibus, canbus, interbus)
Removable support the storage of data and receipts

HARDWARE
CPU 32 bit RISC
Flash memory 256Kbyte, 32Kbyte reserved for the PLC program
RAM memory for user programs, data, pages:256K byte expansible up to 2M byte
RAM memory for PLC data: 4K byte expansible

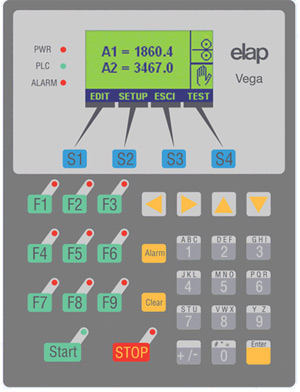

 Vega

1-2 Axes Multi-function Controller
with Embedded PLC



Specifications and performance
Control over 2 axes
Embedded PLC, programmable Language: LADDER or Mnemonic
Programmable user interface
Graphical pages handled
Maine bus for I/O expansion

HARDWARE
CPU 32 bit RISC 65 MIPS
Flash memory 256K byte
RAM memory for user programs data pages: 128K expansible up to 512k byte

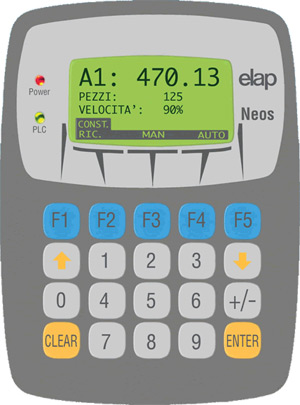

 Neos

Multifunction controller



Specifications and performance
Control over 1 axes
Embedded PLC, programmable via PC in LADDER or Mnemonic language by means of the software CmStudio
Programmable user interface
Graphical pages handled

HARDWARE
CPU 8 bit MIPS
Flash memory 32K byte
RAM /Flash memory for user programs pages and data: 2K byte for the PLC + 2.5K byte for pages and recipes
